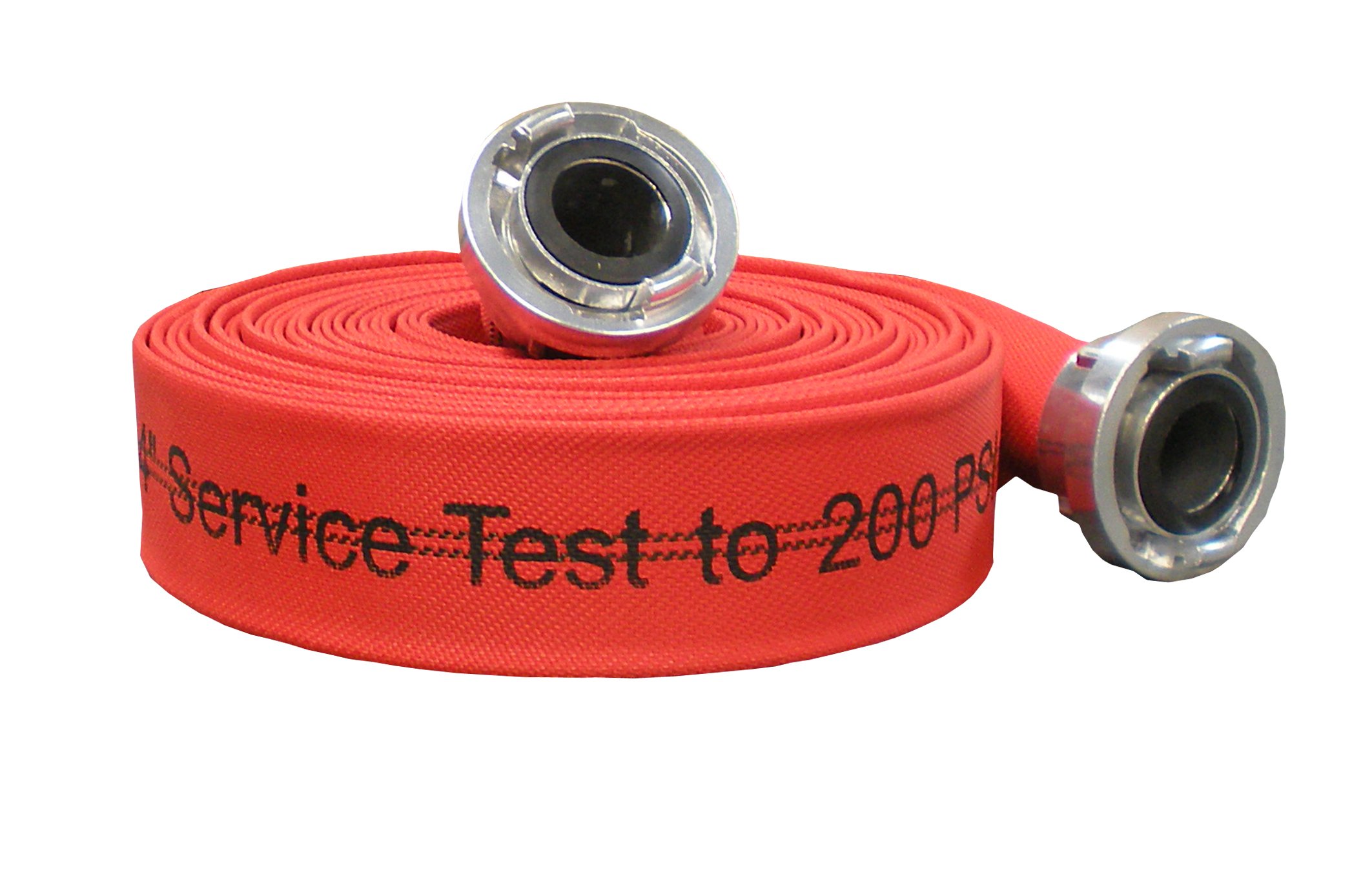

NR Lining Single Jacket hose is for multipurpose water delivery operations and general delivery applications in industry. The hose weave jacket is a single jacket construction and made of high tenacity polyester yarn. Inside is made by NR.PU-coating in different colours available for a better resistance to oil chemicals and dirt.

•     Easy handling due to lightweight construction
• High aging resistance
•  Low friction loss
•  Good resistance to abrasion
•  Easy maintenance and handling

 Applications:

l   Water deliver

l   Industry

Bore  size		Weight	Working Pressure		Burst Pressure		Test Pressure		Length
mm	Inch	g/m	bar	psi	bar	psi	bar	psi	m
25	1		10/17	150/250	30/51	450/750	15/25.5	225/375
38	1 1/2		10/17	150/250	30/51	450/750	15/25.5	225/375
45	1 3/4		10/17	150/250	30/51	450/750	15/25.5	225/375
52	2		10/17	150/250	30/51	450/750	15/25.5	225/375
65	2 1/2		10/17	150/250	30/51	450/750	15/25.5	225/375
70	2 3/4		10/17	150/250	30/51	450/750	15/25.5	225/375
75	3		10/17	150/250	30/51	450/750	15/25.5	225/375
102	4		10	150	30	450	15	225

Construction:

l   Single jackets made by 100% high tenacity polyester yarn

l   Circular woven plain or twill-weave

l   NR liner

 Color: Standard colors is white and red. other colours on request

Length: 15m,20m,25m,30m. Other diameters on request

Standard ref: BS6391 Type 1

Couplings: Binding with international couplings available on request

Temperature Range: -20°C up to +80°C
